This QT15-15 block forming machine uses a 90 mm diameter guide cylinder and a 400 mm height bushing. This design ensures stable synchronization between the tamper head and the mould frame during vertical movement. The robust mechanism minimizes vibration, improves forming accuracy, and extends component life. Ideal for heavy-duty production of solid blocks, it delivers consistent quality and high output under continuous operation. Reliable, precise, and built for demanding environments.
نموذج :
Yixin Machinery HD15-15أبعاد الآلة :
12800*4500*2800حجم المنصة :
1350*1100(MM)زمن الدورة :
13-25(S)قوة الاهتزاز :
120(KN)ضغط محمي :
21(MPA)قوة :
93(KW)Robust Quality Heavy Duty Solid Block Forming Machine QT15-15
Reference video of HD15-15 solid block Forming machine

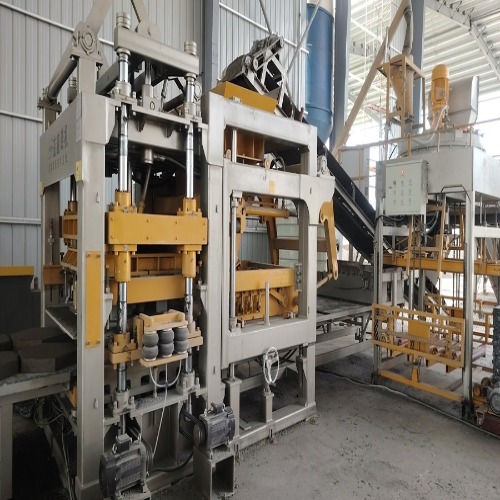

The QT15-15 robust block forming machine integrates Germany’s Continental airbags with a precision pressure control system, ensuring stable, high-density block production. Its tooling system allows operators to change and fix moulds quickly and easily, minimizing downtime. Designed for heavy-duty use, this machine delivers consistent quality and simplifies maintenance, making it ideal for efficient, large-scale concrete block production.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 15 | 2750 | 22000 |
| Solid Block | 240*115*53 | 84 | 20625 | 165000 |
| Holland Paver | 200*100*60 | 55 | 10890 | 87120 |
| Zigzag Paver | 225*112.5*60 | 40 | 7920 | 63360 |
Product Detail

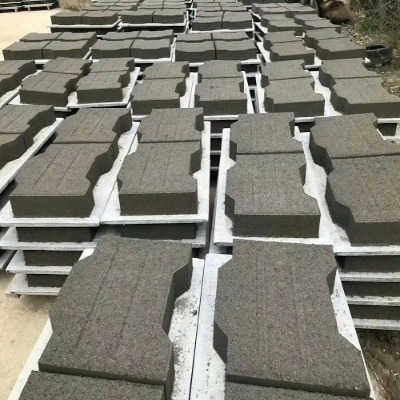

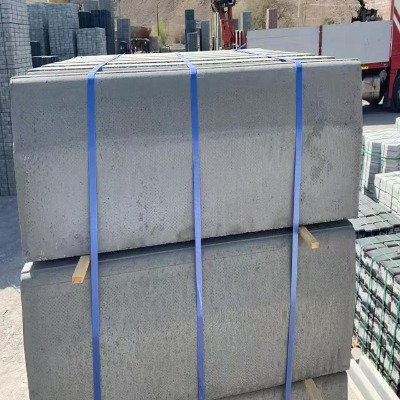

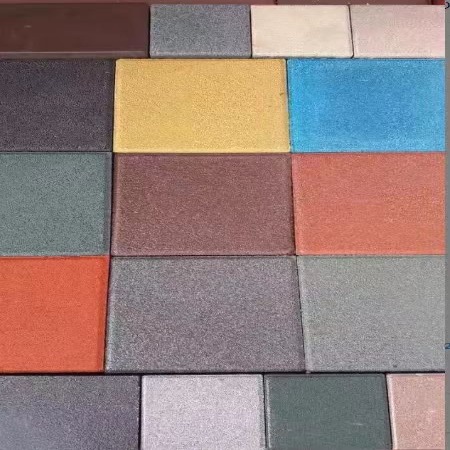

Block Display
The servo hydraulic system delivers precise hydraulic pressure during machine operation, ensuring robust block forming. It intelligently adjusts power output to match demand, significantly reducing energy consumption compared to conventional systems. By enabling smooth, accurate control of moving parts, it enhances production consistency and extends component life.
Customers Access
The QT15-15 features a suspended material cart designed for faster fabrication and enhanced durability. Its robust structure reduces wear and vibration, ensuring stable operation under heavy loads. The quick-feed system shortens material distribution time, boosting overall block production efficiency.
| FAQ |
|
1.What types of products can be produced using Robust Quality Heavy Duty Solid Block Forming Machine QT15-15? Robust Quality Heavy Duty Solid Block Forming Machine QT15-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks. |
|
2. What is the production capacity of the Robust Quality Heavy Duty Solid Block Forming Machine QT15-15? This machine can produce up to 2750 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs. |
|
3.What are the raw materials used in the production process of Robust Quality Heavy Duty Solid Block Forming Machine QT15-15, and can it incorporate industrial waste materials? The raw materials utilized in the production process of Robust Quality Heavy Duty Solid Block Forming Machine QT15-15primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What are the payment terms?
The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods. |
|
5. How automated is the system? Do I need a lot of skilled workers to operate it? The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training. |
