Hydraulic Concrete Block Forming Machine QT10-15 With Top Quality

بيت منتجات آلة تصنيع قوالب الخرسانة

Hydraulic Concrete Block Forming Machine QT10-15 With Top Quality

Hydraulic Concrete Block Forming Machine QT10-15 With Top Quality

Yixin Machinery's QT10-15 Hydraulic Concrete Block Forming Machine boasts top quality, ensuring precision and efficiency in block production. It's designed for high performance, delivering reliable output with superior durability.

  • نموذج :

    Yixin Machinery QT10-15

  • أبعاد الآلة :

    11500*4050*2800(MM)

  • حجم المنصة :

    1150*880(MM)

  • زمن الدورة :

    15-20(S)

  • قوة الاهتزاز :

    105(KN)

  • ضغط محمي :

    21(MPA)

  • قوة :

    45.2(KW)
استفسر الآن

Hydraulic Concrete Block Forming Machine QT10-15 With Top Quality

Reference video of Hydraulic Concrete Block Forming Machine QT10-15 With Top Quality:

This reference video showcases the QT10-15, a top-quality hydraulic concrete block forming machine engineered for high-performance production of pavers, hollow blocks, and solid bricks. Featuring a heavy-duty hydraulic system, high-frequency vibration, and PLC intelligent control, it delivers superior compaction for dense, durable blocks with precise dimensions. The rapid cycle time maximizes throughput, while quick mold changes allow versatile production of various shapes, sizes, and colors. Built with premium components and rigorous quality control, the QT10-15 ensures reliability, efficiency, and consistent top-quality output for large-scale block manufacturers worldwide. Watch the video to see it in action.





Production Data

Block Type Specification（mm） Qty/Pallet Qty/Hour Qty/8 Hours
Hollow Block  400*200*200 10 1800 14400-19200
Solid Brick 240*115*53 51-56 13440 74880-99840
Holland Paver 200*100*60 35 6300 50400
Zigzag Paver 225*112.5*60 30 5400 43200







Product Detail

  • cement hollow block making machine

    The QT10-15 features an advanced PLC central control system with a high-resolution HMI touchscreen interface for precise, automated operation. This intelligent system manages all production parameters including batching, mixing, molding, vibration, hydraulic pressure, and demoulding cycles.  The system includes automatic diagnostics with fault alerts and safety interlocks. Remote access capability allows off-site technical support.

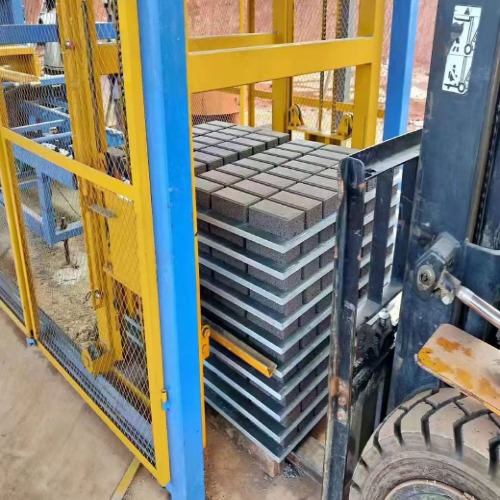

  • silent block making machine

    The QT10-15 is equipped with a heavy-duty automatic block stacker designed for efficient, labor-saving handling of finished concrete blocks. This hydraulic-driven stacking system uses precision grippers to transfer blocks from the pallet to curing racks or direct truck loading. Wear-resistant gripper pads and heavy-duty steel construction provide long-term reliability. This top-quality block stacker significantly reduces manual labor, increases throughput, and improves workplace safety.

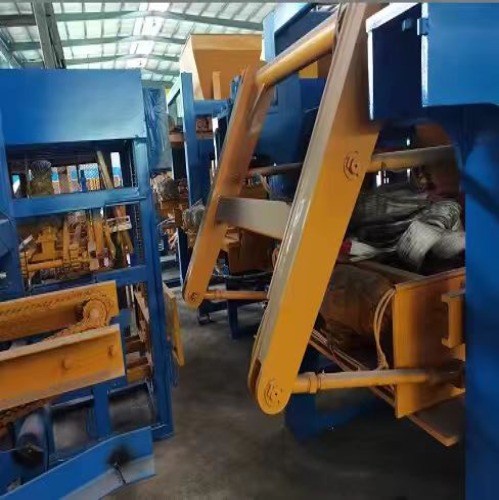

  • wall brick making machine

    The QT10-15 features a heavy-duty feeding arm engineered for precise, efficient material distribution into the mold cavity. Constructed from wear-resistant steel with a smooth interior surface, the arm moves smoothly to deposit concrete mix evenly across the entire mold area. This top-quality feeding arm ensures consistent material distribution, reduced waste, and uniform block density for superior concrete block production.





Block Display

  • solid brick forming machine

  • hollow brick moulding machine

  • zigzag paver block making machine

  • wall block manufacturing machine


The QT10-15 produces a superior range of top-quality concrete blocks. The display showcases road pavers, interlocking blocks, hollow blocks, solid bricks, and curb stones—each featuring clean edges, uniform density, and precise dimensions. Thanks to the PLC central control, heavy-duty feeding arm, and high-frequency vibration system, every block achieves exceptional compressive strength, low water absorption, and excellent surface finish. Available in various shapes, sizes, colors, and textures with quick mold changes, the display demonstrates the machine's versatility.





Product Display

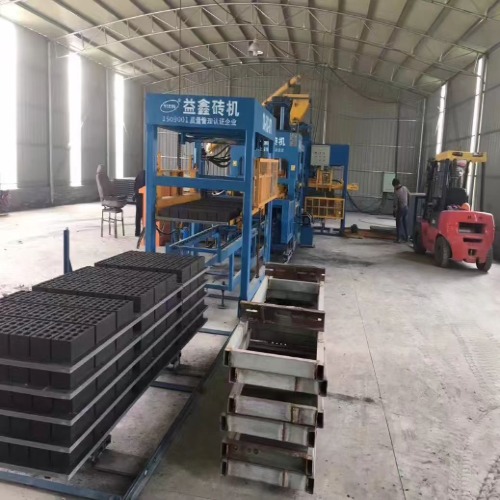

  • hydraulic automatic brick making machine

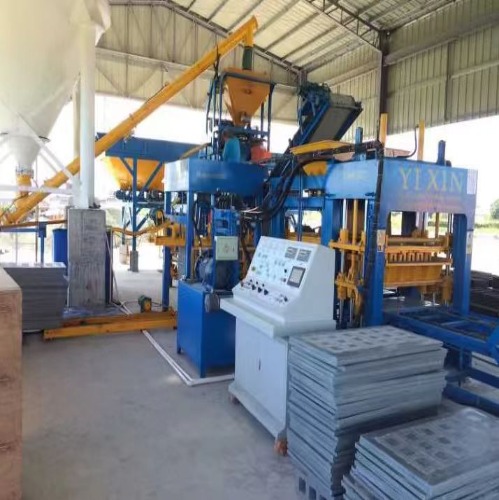

  • concrete block making machine manufacturer price

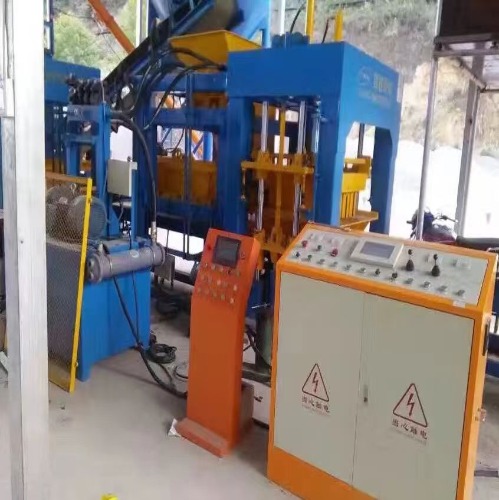

  • diesel engine block and brick making machine


The QT10-15 product display showcases the machine's exceptional output range and top-quality engineering. Featured prominently are road pavers, interlocking blocks, hollow blocks, solid bricks, and curb stones—each exhibiting clean edges, uniform density, and precise dimensions. The display highlights the PLC central control, heavy-duty feeding arm, block stacker, and high-frequency vibration system that ensure superior compaction and consistent quality. Also demonstrated is the machine's versatility through quick mold changes, allowing production of various shapes, sizes, colors, and textures. The QT10-15 product display proves how this hydraulic machine delivers reliability, efficiency, and top-quality output for large-scale block manufacturers worldwide.



FAQ

1.What are shipping costs like?

Shipping costs vary by destination port. Contact us with your port or address for a sea freight or door-to-door quotation. We offer FOB (China ports), CIF (your port), and DDP (door delivery) options.

2.What professional services are included?

We provide installation guidance, operator training, commissioning support, spare parts supply, and ongoing technical assistance.

3.What is the lead time?

Standard lead time: 20–30 working days after deposit. Customizations (special molds, voltage, colors) add 10–15 days. We provide weekly production updates with photos.

4.What makes the QT10-15 "top quality"?

Top quality comes from premium components: imported PLC (Siemens/Schneider), hardened chrome-plated guide rods, high-grade ductile iron vibration table, wear-resistant steel liners, and heavy-duty hydraulic cylinders from trusted global brands. Each machine undergoes 8-hour test runs before shipment.

5.How many molds come with the machine?

Standard package includes one mold of your choice (hollow block, paver, or solid brick). Additional molds are available for purchase. We recommend starting with 2–3 mold types for production flexibility.
